Digital Optical Pyrometer
Our digital pyrometers PYROSPOT are radiation thermometers for a non-contact measurement of
temperature between -40 °C to 3000 °C. They are characterized by robust housings, excellent accuracy and
high reliability. The pyrometers are specifically suitable for the use in industrial environments.
With an extensive range of accessories pyrometers can be customized individually to the application and
integrated into system solutions. For the parameterization of the pyrometer settings and interpretation
of the measured data the Windows® software PYROSOFT Spot is available. We offer you an extremely wide
pyrometer range with an excellent cost performance ratio. So you can find the suitable product for
your application. To minimize physically caused temperature measurement errors resulting from emissivity
inaccuracies, one should measure at a short wavelength.
They are suitable for temperature measurements from 200 °C,
for example on metals, graphite or ceramic. The color video module enables together with the
integrated 2.5" TFT display a very convenient aiming of the pyrometer even at high measurement
temperatures. The robust portable pyrometers, that are specifically suitable for processes for the
winning and working of metals, minimize measurement errors at a very low, not known or varying emissivity. The devices PYROSPOT
DG 80NV portable measure temperatures from 200 °C to 2000 °C at short wavelengths within the spectral
range from 1.5 µm to 1.8 µm. The pyrometers PYROSPOT DS 80NV portable work at 0.8 µm to 1.1 µm
wavelength and enable temperature measurements from 550 °C to 2500 °C. If there are very harsh
ambient conditions, where the optics can contaminate or if the measurement field of the pyrometer
is not filled completely, the ratio pyrometer PYROSPOT DSR 80NV portable is available. It measures
temperatures between 500 °C and 2500 °C at a wavelength of 0.7 µm to 1.1 µm. The devices are very
fast with response times starting at five milliseconds (t95). All pyrometers have a vario
optics up to a distance ratio of 200:1 and better. Use the four user controls beneath the TFT display

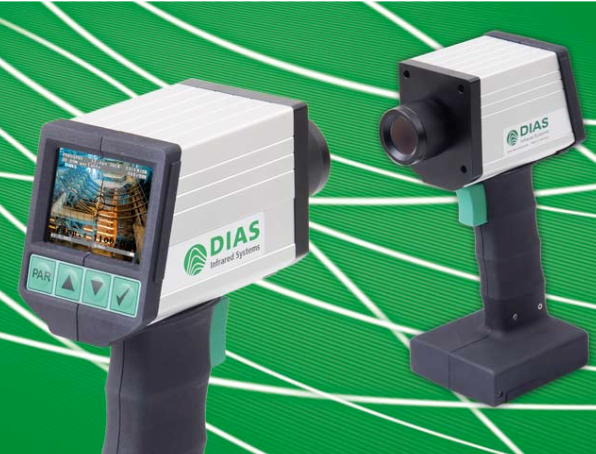

to adjust all important pyrometer parameters. Integrated measured data storage allows the storage of up to 999 data records. Data for evaluation can be transferred to an external computer via the USB interface. PYROSPOT Series 80 portable handheld pyrometer for high-temperature application
- Measurement temperatures from 200 °C to 2500 °C
- Integrated video module Color TFT display with measurement spot mark, option: additional laser
- User controls for parameterization
- Operation possible with protective gloves
- Vario optics for measurement distances between 0.65 m and 12 m
- Optics for close range (measurement distances between 225 mm and 230 mm)
- Small measuring field diameters from 1.2 mm
- Minimization of emissivity caused measurement errors
- Temperature resistant and shock resistant housing.
